60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m



  • 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m
  • Buy 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m online today
  • 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m from Omega Build
  • Great deals on 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m
  • Affordable 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m
  • Great selection of 60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m
£ 44.79 Ex. VAT
£ 53.75 Inc. VAT

Glazing Bar length

Glazing Bar Colour

Quantity

Download PDF



60mm wide Aluminium Rafter Supported Glazing Bar, 3.0m & 4.0m from Omega Build



Product details:


Suitable for 4mm, 6mm, 10mm, 16mm, 25mm, 32mm and 35mm polycarbonate sheet and glass.
Bar pack includes Aluminium cap, base, base gasket and cap gaskets.

There is also an optional aluminium cap .

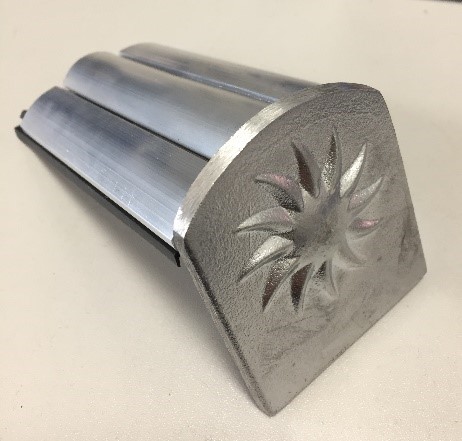

The aluminium endcap doubles up as a glass stop.

The rubber gasket is 60mm wide and aluminium top cap is 60mm wide.

The Aluminium Rafter Glazing Bar is available in Brown, White Anthracite grey and mill finish.

This is a versatile screw down bar which can be used for a wide range of roofs.

When specifying the dimensions of the glazing panels deduct 15mm from the width between your glazing bar/rafter centres for the glazing panel width.

This allows for securing the glazing bar to the rafter and expansion/contraction of the glazing panels.
