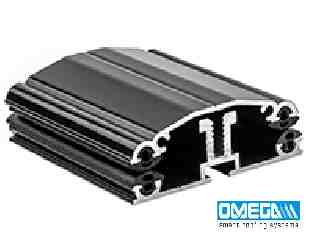

OM226 Short Span Self-Supporting Glazing Bar, 3.0mand 4.0m
|
||||||

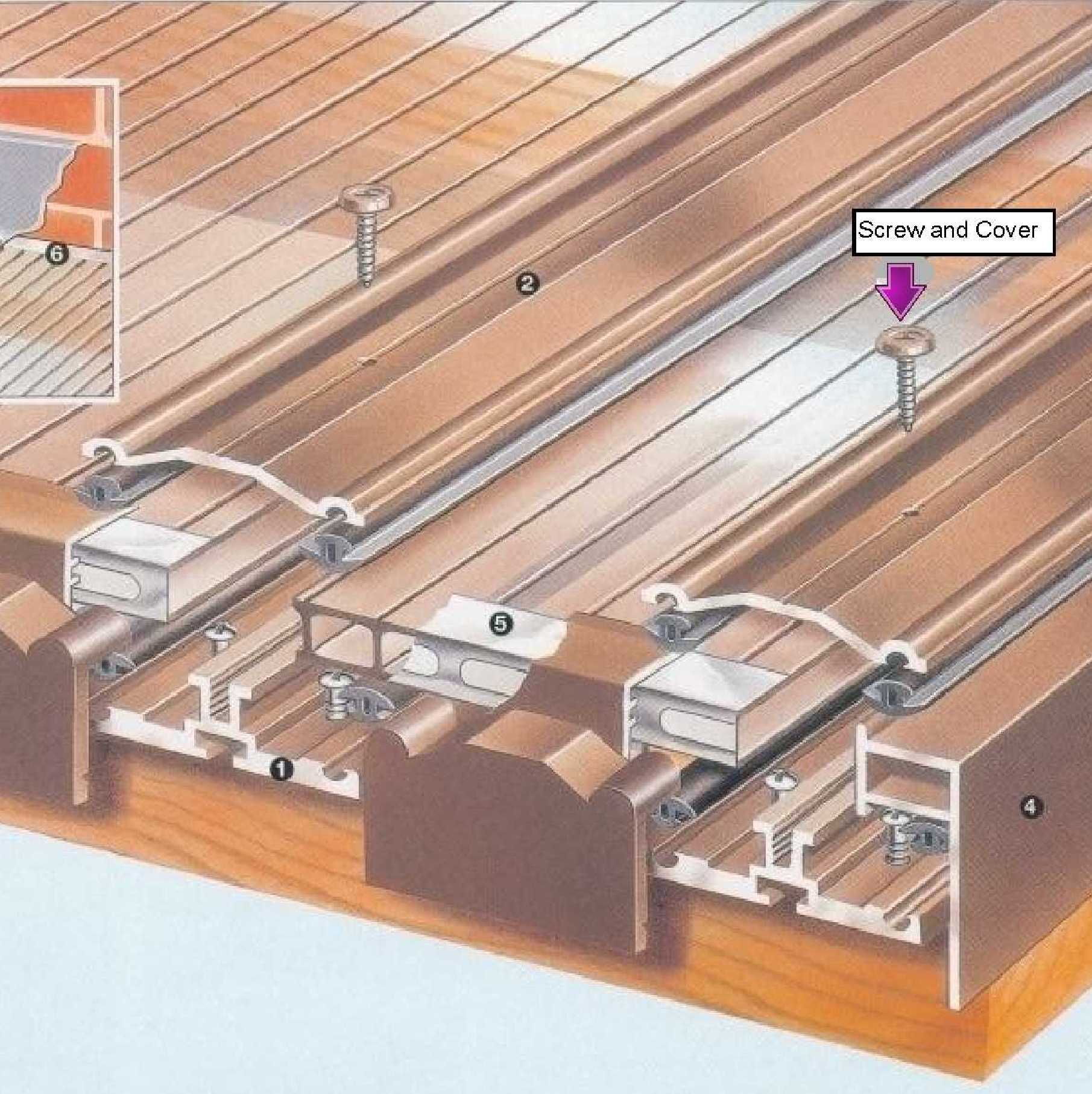

OM226 Short Span Self-Supporting Glazing Bar, 3.0mand 4.0m from Omega BuildProduct details:The OM226 Bar can be used with multiwall polycarbonate (4mm, 6mm, 10mm, 16mm, 25mm thick). It is supplied in a choice of white, brown or mill finish. Each bar comes with the aluminium base, top cap(with the gaskets) and one end cap. The screws and screw-covers needed to fit the bar can be purchased separately. This glazing bar is ideal for a roof where you have only a few rafters, but, primarily cross-purlins (e.g. when replacing old timber greenhouse roofs, replacing corrugated plastic roofs). The glazing bar will self-support up to 1,400mm at the following centres 10mm Polycarbonate: 700mm. 16mm Polycarbonate: 1,000mm. 25mm Polycarbonate: 1,230mm At the roof edges use a matching ‘F’ section. The top cap should be screwed down at 300mm intervals. |
