Heavy Duty UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 6.0m from Omega Build



Product details:


Suitable for 16, 25mm and 35mm polycarbonate .

Available in white or also brown (poa).

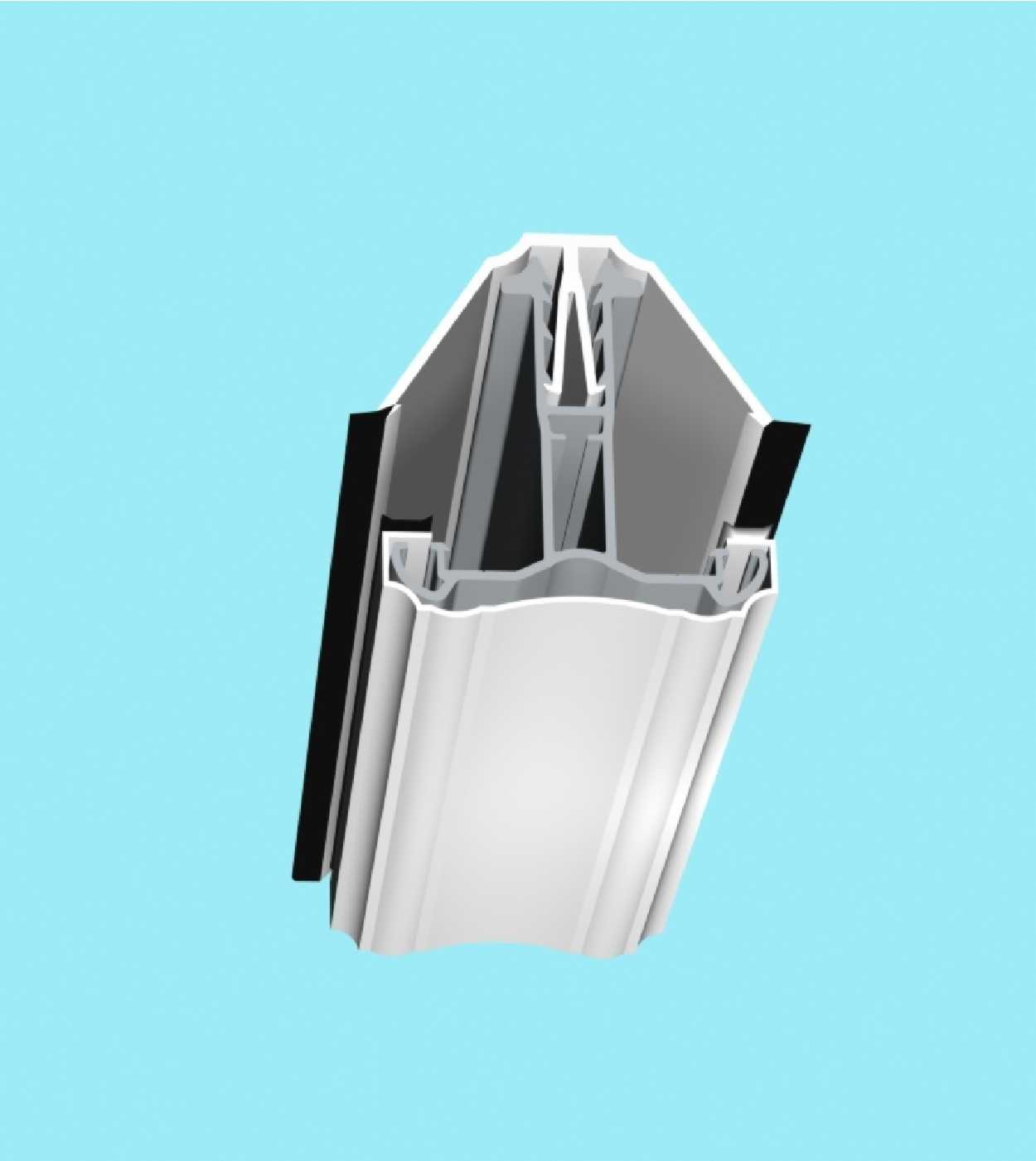

Bar pack complete with structural aluminium bar, upvc top cap and under cladding with integral gaskets & 1 end cap.

Glazing deduction is 25mm per intermediate bar.

Bar height when glazed with 25mm polycarbonate is 93mm

Spanning recommendations based on 35mm polycarbonate with a 60 kg/m2 loading

Maximum Length(mm)

Width between bars(mm)

3100

1000

3300

800

3400

700

4000

500
