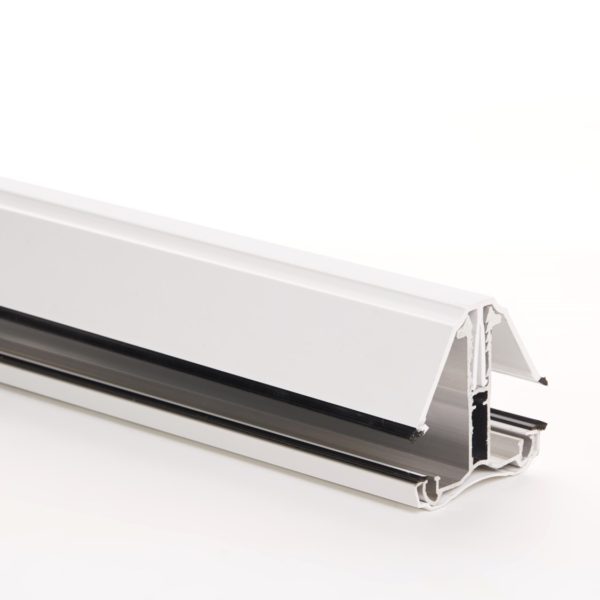

Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m



  • Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m
  • Buy Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m online today
  • Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m from Omega Build
  • Great deals on Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m
  • Affordable Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m
  • Great selection of Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m
£ 29.46 Ex. VAT
£ 35.35 Inc. VAT

Quantity

Download PDF



Standard UPVC Self-Supporting Glazing Bar for 16,25 or 35mm thick glazing, 2.0m from Omega Build



Product details:


Suitable for 16, 25mm and 35mm polycarbonate .

Available in white only.

Bar pack complete with structural aluminium bar, upvc top cap and under cladding with integral gaskets & 1 end cap.

Glazing deduction is 25mm per intermediate bar.

Bar height when glazed with 25mm polycarbonate is 76mm

Spanning recommendations based on 35mm polycarbonate with a 60 kg/m2 loading

Maximum Length(mm)

Width between bars(mm)

2500

1000

2750

700

3000

500
