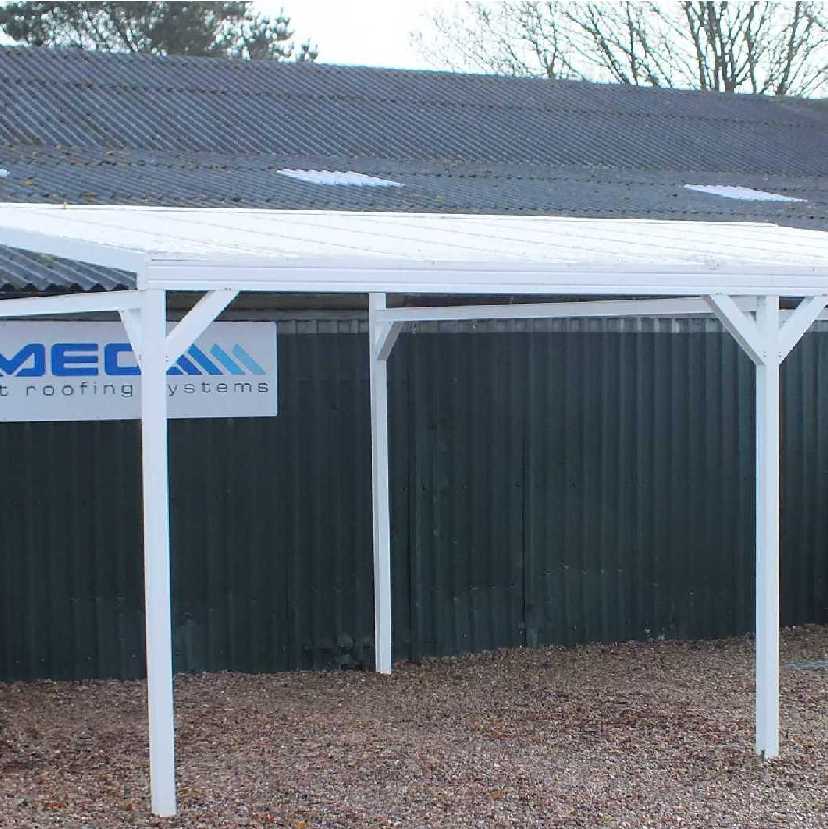

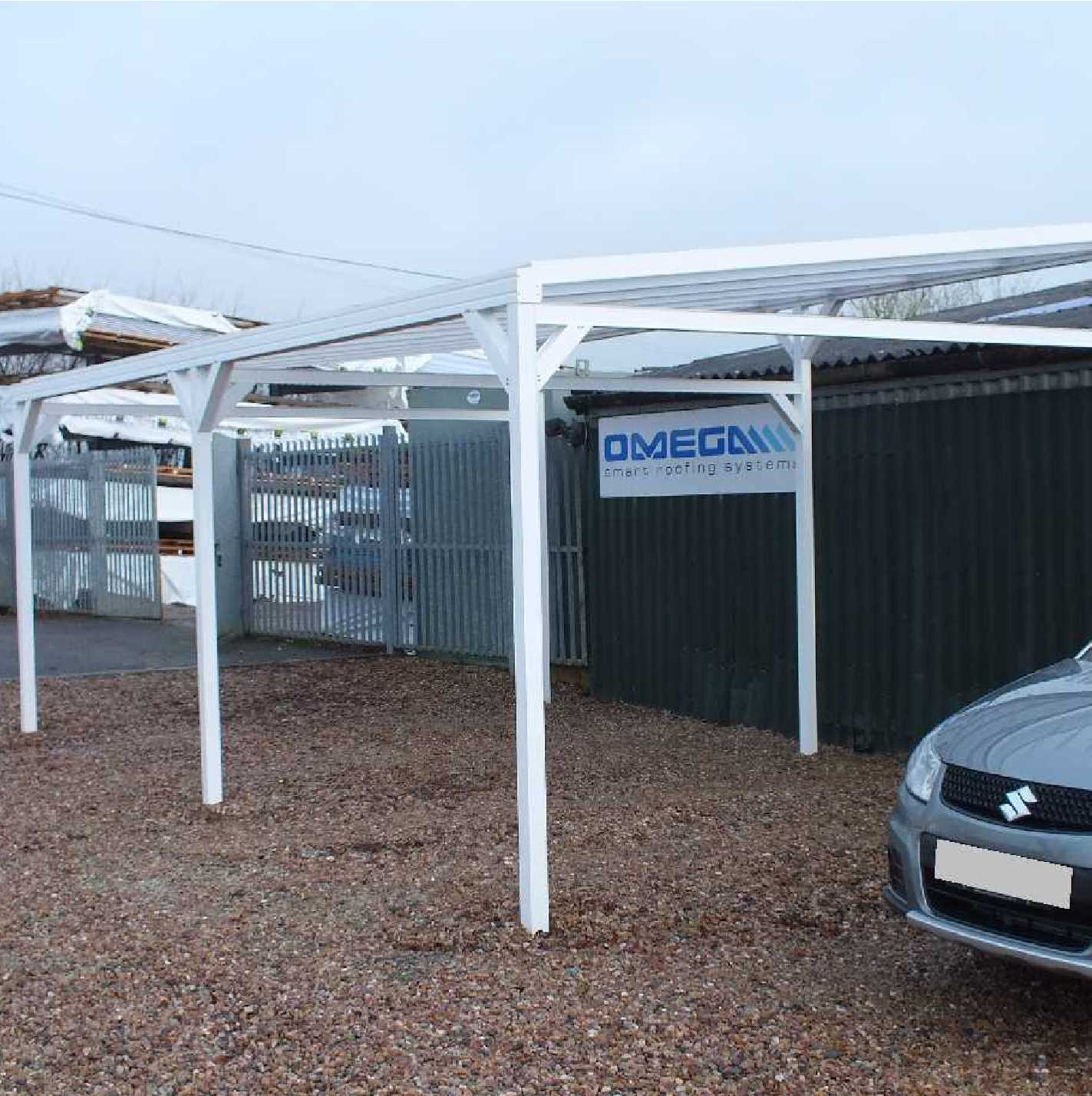

Omega Smart Free-Standing, White MonoPitch Roof Canopy with 16mm Polycarbonate Glazing - 3.1m (W) x 2.0m (P), (4) Supporting Posts
|
|||||

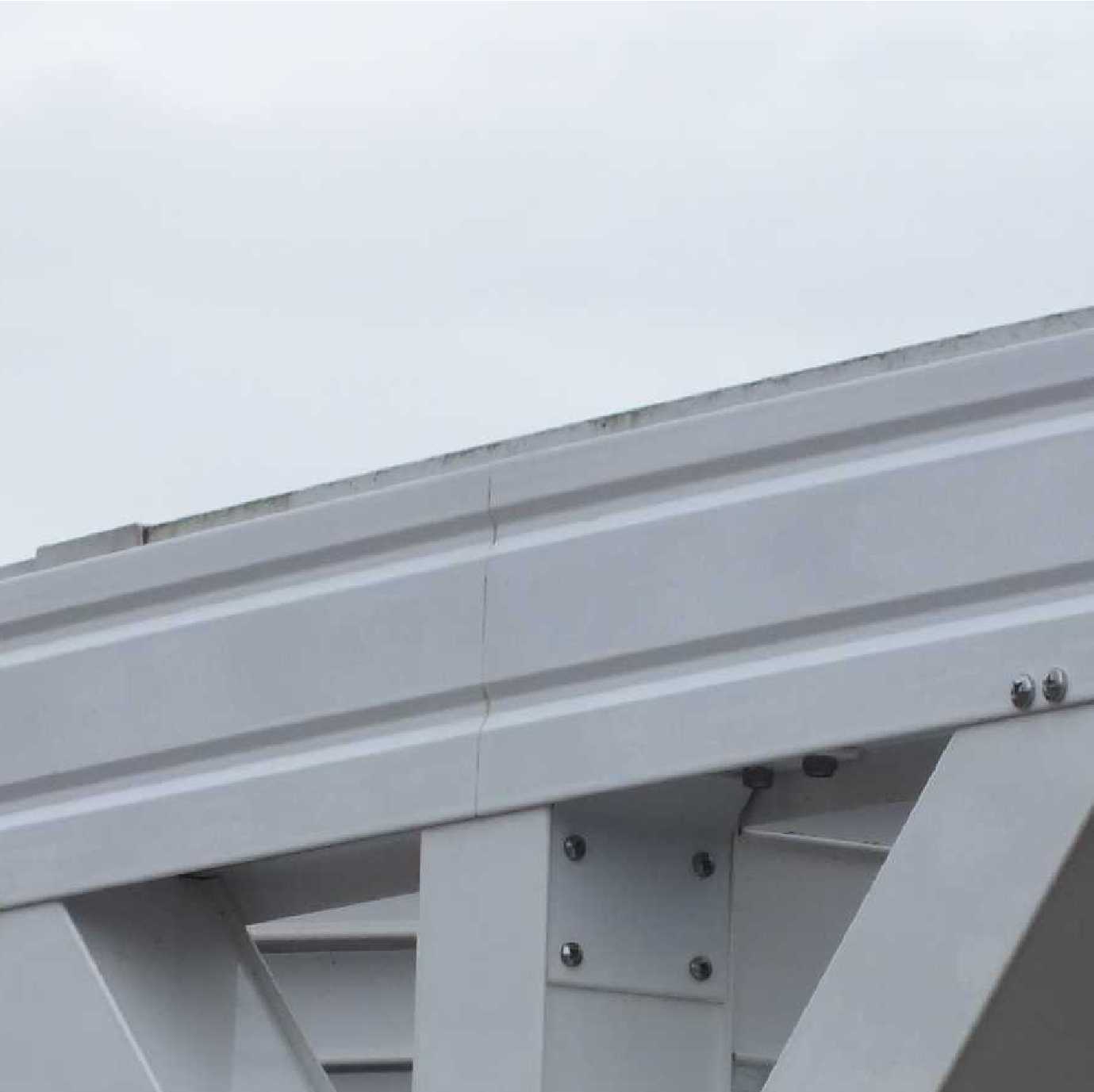

Omega Smart Free-Standing, White MonoPitch Roof Canopy with 16mm Polycarbonate Glazing - 3.1m (W) x 2.0m (P), (4) Supporting Posts from Omega BuildProduct details:Canopy Dimensions: 3,106mm (wide) x 2,062mm(projection). Roof pitch: 19 degrees Please note: ‘Width’ is the dimension along the ridge’ and ‘Projection’ is the dimension from the outside edge of the Ridge to the outside edge of Eaves Structural Aluminium (T6) Frame, powder-coated in Brown or White. 16mm Clear, Bronze or Opal Polycarbonate Roof Panels. Foundations for supporting posts require 750mm square hole x 850mm deep hole back-filled with concrete. All joints are fitted with Knee-Braces. Nominal clearance from finished ground level to Tie-bar is 1,975mm (6’6”). All canopies are supplied with a detailed installation guide. |
